Flexo printing machine ZJR-330/450/650

Flexo printing machine ZJR-330/450/650

Brief
This series of flexo printing machines is suitable for printing on PET, OPP, CPP, PP and other film materials.

Technical parameters of flexo printing machines
Model ZJR-330 ZJR-450 ZJR-650
Max. printing speed 180m/min 180m/min 180m/min
Printing colors 4-12colors 4-12colors 4-12colors
Max. web width 340mm 450mm 650mm
Max.printing width 330mm 470mm 670mm
Max.unwinding diameter 900mm 900mm 1000mm
Max.rewinding diameter 900mm 900mm 1000mm
Printing length Z76-190(241.3-603.25mm) Z76-190(241.3-603.25mm) Z96-230(340-730.25mm)
Dimensions(L x W x H) 10.83mx1.56mx1.52m 10.83mx1.68mx1.52m 10mx1.88mx1.56m
Advantages:
  • Each console of the children book production line is equipped with an automatic paper feeding device and automatic gluing system, which can use stencil positioning and coating glue on special-shaped sheet paper according to customer requirements.
  • Our production line features a CNC man-machine interface, adopts the Japanese Yaskawa servo motors and NSK bearings, realizing automatic operation, which has the characteristics of low noise, easy operation and high precision of positioning.
  • Our production line adopts an stencil gluing method, which can save glue. Moreover, the glue will not overflow, and the paper will not deform from this gluing method.
  • Our production line is equipped with an alarm system, which lights warning lights of different colors according to different conditions. Operators can solve problems in time by directly reading the colors of warning lights. For example, red light will alarm when there is no paper delivery, yellow light will alarm if there is a paper shortage before gluing, and green light will light in normal condition.
  • Compared with the ordinary pasting machine, our shaped board book pages mounting & binding production line can not only realize the comprehensive gluing of classic board books, but also complete the partial gluing of opening pages, which can make the inner pages of books more diversified and full of vivid images that kids will love.
Optional Functions

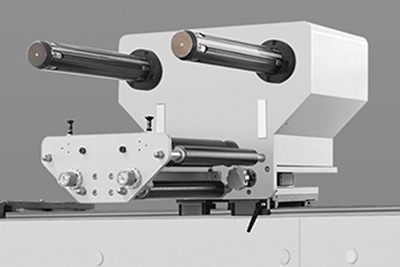

  • Cold Foiling Unit

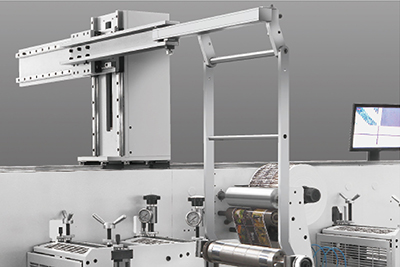

  • Rotary die cutting station

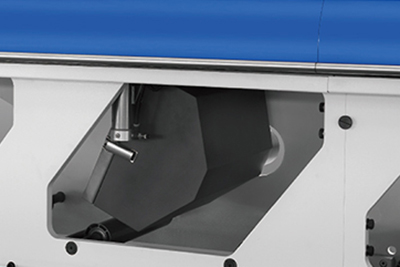

  • Hot air dryer
  • Delam/relam Unit
  • Screen Printing Unit

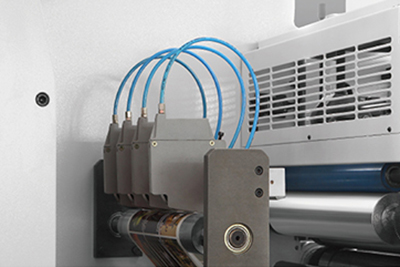

  • Slitting unit
Details
