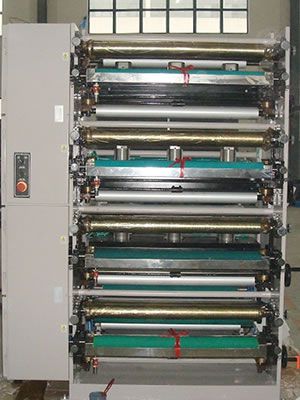

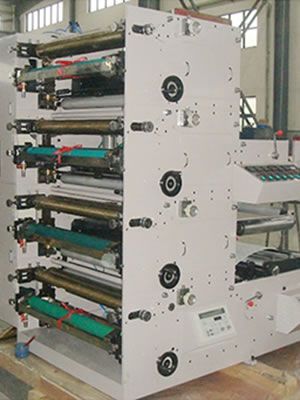

This ZBS-620 flexo printing machine transfers the ink through ceramic anilox roll effectively.
Its unwinding and rewinding units are designed with magnetic powder brakes and clutches, and Mitsubishi automatic tension controlling device.
Each printing unit is equipped with a hot air dryer and a 360 degree adjustable printing plate.
If the flexo printing machine stops, its ink rollers will keep running at low speed after parting with the printing rollers so as to prevent the ink from drying.
Mounted with imported continuously variable frequency speed controller, the main motor maintains stable performance all the time.
Capable of feeding material, printing, vanishing, drying and rewinding at one stroke, this product is extremely applicable for printing paper cups, packaging labels and so on.
This ZBS-620 flexo printing machine is not mounted with rotary die cutting station, waste rewinder, laminating device and turning bar at all.
Technical Specifications
Model
ZBS-620
Printing speed
50m/min.
Printing color
4-6 colors
Max. width of paper
650mm
Max .printing width
620mm
Max. unwinding/rewinding diameter
600mm
Printing length
175-355mm
Thickness of flexo plate
1.7mm or 1.14mm
Precision of chromatography
±0.1mm
Dimensions
2.1m×1.55m×3.1m
Machine weight
About 3500kg
Shipping Information
Packing
Export standard wooden case
Model No.
ZBS-620
Standard
4-6 colors
Productivity
15sets per month
Unit Price/Payment
USD16000-USD65000
H.S. Code
84431600
Trademark
WEIGANG
Origin
China
Min. Order
1 set
Transportation
Land, sea, air
Options
Web guiding system
UV dryer
Special unwinder combined with rewiner with the diameter up to 1000mm
Video inspecting system
Elctric hoist
Details
4 colors
4 colors
5 colors paper cup printer
5 colors paper cup printer
5 colors paper cup printer
Web guiding system
Video inspecting system
Special unwinder combined with rewiner with the diameter up to 1000mm
