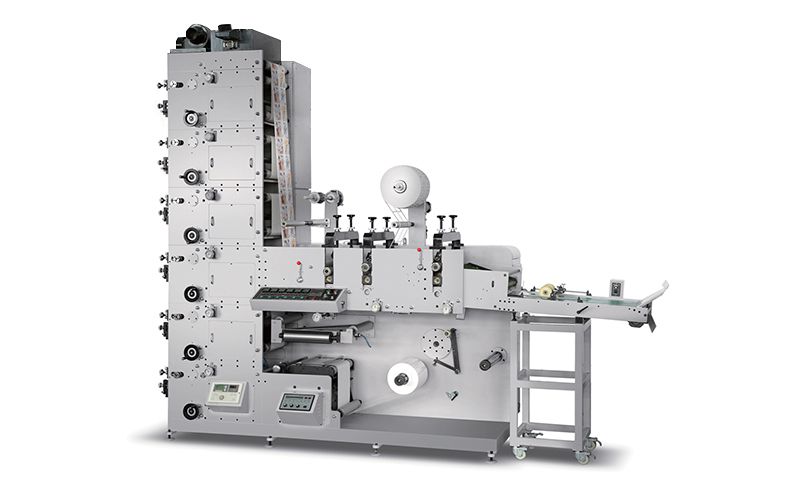

This ZBS-450G flexo printing machine uses the ceramic anilox roll for ink transfer.
Its printing plate in each printing unit allows 360° adjustment.
Our machine is designed with tripe rotary die cutting stations. Therein, the first and second stations are applicable for double sides die cutting, and the third station is used for sheeting or slitting printed materials.
In the standard configuration, the computer controlled web guider is mounted in the front of printing unit to keep the material in the right position all the time.
A series of optional devices is available. For example, the conveyer system can be applied in combination with the third die cutting station for conveying the finished products orderly. The static image monitoring device can be used to inspect the image quality for high speed printing.
Automatic magnetic powder tension controller is selected for unwinding and rewinding units. The double rewinding unit can be also mounted if needed.
When the flexo printing machine stops printing, the ink rollers will be separated from the printing roller automatically, and will keep low speed rotating to prevent the ink from drying.
Aside from the imported inverter, the machine also employs the main motor with advanced continuously variable frequency speed controller.
Easy for operation, this flexo printing machine is able to achieve the material feeding, printing, varnishing, drying, laminating, die cutting, rewinding and sheeting at one stroke.
Technical Specifications
Model
ZBS-450G
ZBS-450G
ZBS-450G
ZBS-450G
Printing speed
55m/min.
55m/min.
55m/min.
55m/min.
Printing color
3 colors
4 colors
5 colors
6 colors
Max. width of paper
480mm
480mm
480mm
480mm
Max .printing width
450mm
450mm
450mm
450mm
Max. unwinding/rewinding diameter
650mm
650mm
650mm
650mm
Printing length
175-355mm
175-355mm
175-355mm
175-355mm
Thickness of flexo plate
1.7mm or 1.14mm
1.7mm or 1.14mm
1.7mm or 1.14mm
1.7mm or 1.14mm
Precision of chromatography
±0.1mm
±0.1mm
±0.1mm
±0.1mm
Dimensions
2.6m×1.35m×2.1m
2.6m×1.35m×2.3m
2.6m×1.35m×2.6m
2.6m×1.35m×2.6m
Machine weight
About 2650kg
About 2800kg
About 3100kg
About 3100kg
Shipping Information
Packing
Export standard wooden case
Model No.
ZBS-450G
Standard
3-6 colors
Productivity
15sets per month
Unit Price/Payment
USD16000-USD65000
H.S. Code
84431600
Trademark
WEIGANG
Origin
China
Min. Order
1 set
Transportation
Land, sea, air
Options
Sheeter conveyer
UV dryer
Separate unwinder shelf (diameter up to 900mm)
Corona treater
Cold stamping unit
Video inspecting system
Safe cover for printing unit
Slitting unit
Details
Web guiding system
Three die cutting stations
Separate unwinder shelf with diameter of 900mm
Die cutting roller
Sheeter and conveyer belt
Slitter unit
