Flexo Printing Machine

A flexo printing machine can use different types of inks, including UV ink, water based ink and solvent ink, etc. Flexo printing machine using water based inks is suitable for a comprehensive range of materials, including brown paper, label paper, wallpaper, rubber, and variety of packaging materials. So, flexo graphic printing equipment provides us with an ideal solution for printing food packaging labels, pharmaceutical labels, cosmetic labels, daily consumable labels and so on.

The printing unit is the core of a flexo printing machine, and its arrangement directly influences the performance, speed and range of application of flexo printing presses.

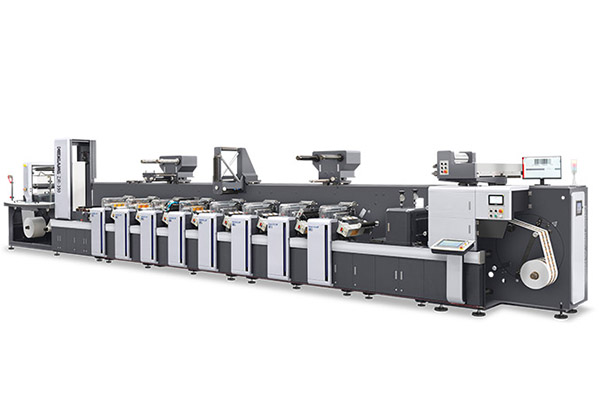

    1. Flexo Printing Machine, ZJR-350G/450G/650G
    2. Flexo Printing Machine, ZJR-350G/450G/650GThe whole machine adopts the latest servo control system from Germany and each printing unit is driven by individual servo motor. The whole machine is equipped with 23 servo motors (8 color-printing and 3 die-cutting stations) in total; superior accuracy is guaranteed even during high speed running. Learn More
    1. Flexo Printing Machine with Single Rotary Die Cutting Station, ZBS-320
    2. Flexo Printing Machine with Single Rotary Die Cutting Station, ZBS-320The rewinding and unwinding units are designed with magnetic powder brakes and clutches for tension control. Flexo printing machines equipped with Mitsubishi auto tension controller. Thus, high precision roll material rewinding and unwinding is guaranteed.Learn More
    1. Flexo Printing Machine with Tripe Rotary Die Cutting Stations, ZBS-320G
    2. Flexo Printing Machine with Tripe Rotary Die Cutting Stations, ZBS-320GThis kind of flexo printing machinery is designed with three die cutting stations in total. The first and the second stations are applicable for double side die cutting, and at the same time, they are equipped with a waste material rewinding unit. The third die cutting station is used for sheeting and slitting printed materials.Learn More
    1. Flexo Printing Machine with Single Rotary Die Cutting Station, ZBS-450
    2. Flexo Printing Machine with Single Rotary Die Cutting Station, ZBS-450This flexo printing machine adopts a ceramic anilox roller for ink transfer. To guarantee high precision material unwinding and rewinding, our flexo printing machinery is designed with automatic tension controllers to control the tension of winding units. All printing units are designed with 360° plate adjustment. Learn More
    1. Flexo Printing Machine with Tripe Rotary Die Cutting Stations, ZBS-450G
    2. Flexo Printing Machine with Tripe Rotary Die Cutting Stations, ZBS-450GThis flexo printing machine is an ideal replacement for traditional adhesive label printing equipment. In addition to being used for printing adhesive labels, this flexographic printer can also be used for producing commercial papers and posters as well various paper advertising materials, among others.Learn More
    1. Flexo Printing Machine, ZBS-320 (1-6 Colors)
    2. Flexo Printing Machine, ZBS-320 (1-6 Colors)The ceramic anilox roll is mounted in this ZBS-320 flexo printing machine for ink transferring. This machine is also designed with unwinding and rewinding devices controlled by magnetic powder brakes and clutches, and the Mitsubishi auto tension controller.Learn More
    1. Flexo Printing Machine, ZBS-320G (3/4/5/6 Colors)
    2. Flexo Printing Machine, ZBS-320G (3/4/5/6 Colors)It uses the ceramic anilox cylinder for ink transfer. There are totally three rotary die-cutting stations, namely the first and second stations applicable for double side die cutting and the third die-cutting station for sheeting or slitting printed materials. Learn More
    1. Flexo Printing Machine, ZBS-450 (1-6 Colors)
    2. Flexo Printing Machine, ZBS-450 (1-6 Colors)This ZBS-450 flexo printing machine chooses the ceramic anilox roll for ink transfer. It is able to print with 1 to 6 colors respectively. There are brakes, clutches and automatic tension controller mounted for controlling the unwinding and rewinding devices. Learn More
    1. Flexo Printing Machine, ZBS-450G
    2. Flexo Printing Machine, ZBS-450GA series of optional devices is available. For example, the conveyer system can be applied in combination with the third die cutting station for conveying the finished products orderly. The static image monitoring device can be used to inspect the image quality for high speed printing. Learn More
    1. Flexo Printing Machine (4-6 Colors), ZBS-620
    2. Flexo Printing Machine (4-6 Colors), ZBS-620This ZBS-620 flexo printing machine transfers the ink through ceramic anilox roll effectively. Its unwinding and rewinding units are designed with magnetic powder brakes and clutches, and Mitsubishi automatic tension controlling device.Learn More
    1. Flexo Printing Machine (4-6 Colors), ZBS-820
    2. Flexo Printing Machine (4-6 Colors), ZBS-820Separated from the printing roller automatically, the ink roller keeps rotating at low speed to prevent the ink from drying when the flexo printing machine stops. The main motor is designed with an imported continuously variable frequency speed governor, showing the stable performance of the machine.Learn More
Advantages
  • Designed with simple structure, flexographic printing equipment is easy to operate and maintain.
  • With rapid printing speed, flexo printing machines are suitable for printing a middle and large quantity of materials.
  • It is applicable for printing on paper materials or adhesive materials with a thickness of 20-300gsm.
  • Force of impression is low, which is approx. 19.6-39.2N/cm2. So, flexo printing machines provide us with an ideal printing solution on printing stocks which cannot endure high impact force.
  • High printing quality.

Weigang Machinery Company is an experienced flexo printing machinery manufacturer and supplier based in China. Since our inception in 1999, we have been dedicated to the production and development of printing equipment. Over approx. ten years development, we have obtained CE certifications for our products and have exported our products to over 50 countries around the world, including the United States, Argentina, Britain, Holland, Spain, Russia, Singapore, and Japan, to list a few.

We expect to expand our business to an even larger area. You are very much welcomed to inquiry or purchase our printing machinery, die cutting machinery and slitting machines. You can contact us by email and phone list on this website.

Technical parameters of flexo printing machines
Flexo Printing Machine Model ZBS-320 ZBS-320G ZBS-450 ZBS-450G
Printing speed 50m/min 55 m/min 50m /min 50m /min
Printing colors 1-6 colors 2-6 colors 1-6 colors 2-6 colors
Max. web width 320mm 320mm 480mm 480mm
Max. printing width 310mm 310mm 450mm 450mm
Max. unwinding diameter 600mm 650mm 600mm 650mm
Max. rewinding diameter 600mm 650mm 600mm 650mm
Printing length Z56-112/Z65-145/Z75-170 Z56-112/Z65-145/Z75-170 Z56-112/Z65-145/Z75-170 Z56-112/Z65-145/Z75-170
Overprinting precision ±0.1mm ±0.1mm ± 0.1mm ± 0.1mm
Printing machine dimensions (L×W×H) for 5colors 2×1.1×2.6(H)(m) 2.6×1.1×2.6 (m) 2.27m× 1.55m × 2.9m 3.6m×1.48m×2.9m
Printing machine weight Approx. 2200kg Approx. 3100kg Approx. 3300kg Approx. 3800kg
Superior quality, reasonable prices and considerate service have helped us to expand our market. We now have a customer base in the United States, Argentina, Britain, the Netherlands, Spain, Portugal, Russia, Kazakhstan, Pakistan, India, Thailand, Malaysia, Singapore, Vietnam, Philippines, South Korea, and Japan, among many others.
