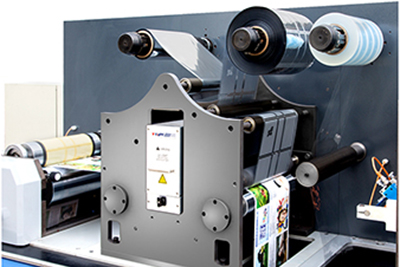

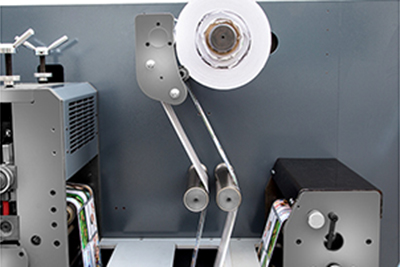

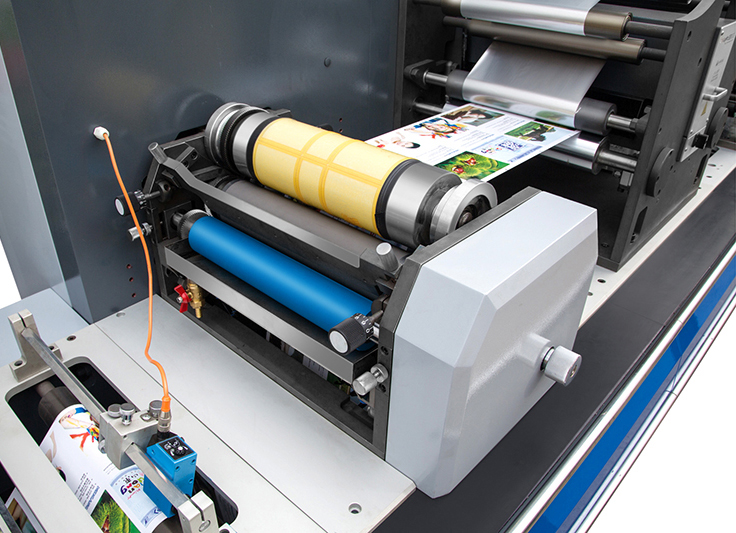

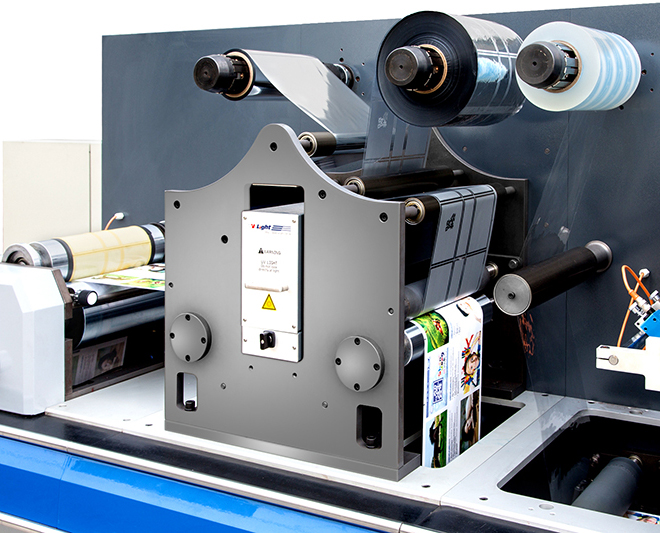

Die Cutting Machine, ZM-320
- Max. die-cutting speed (rotary) 120m/min
- Max. die-cutting speed (semi-rotary) 65m/min
- Max. die-cutting width 300mm
- Max. web width 320mm
- Die cutting machine running
- How to operate

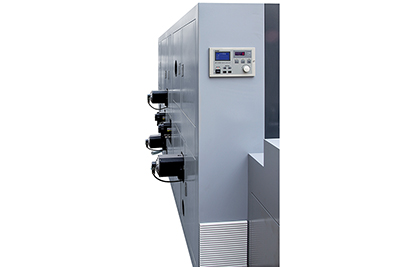

This ZM-320 die cutting machine imports the latest Rexroth-Bosch servo and control system from Germany. Its patent die cutting system supports rotary and semi-rotary cutting based on the requirements of production.

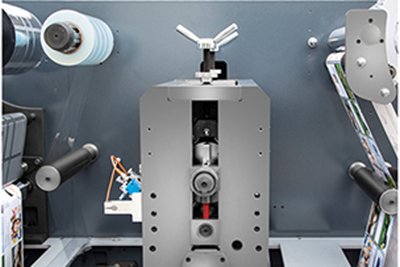

Different from the traditional intermittent type, the semi-rotary electric cutter keeps the same working tension for the unwinder, wed guider and rewinder so that the materials will not drift off while die cutting. Moreover, this semi-rotary die cutting unit is mounted with a big magnetic cylinder, which is convenient for changing dies for different applications.
The die cutting machine features high rotating speed, high precision and efficiency, easy operation and low cost. It is suitable for various die cutting tasks including small or large scale. For the large scale production, users can change the magnetic roller properly so as to improve the die cutting quality and output.
Our product is committed to making maximum profit for you, and it is an ideal converting machine for the printing house.
Rotary/Semi-Rotary Die Cutting Machine with All Options (B-1)

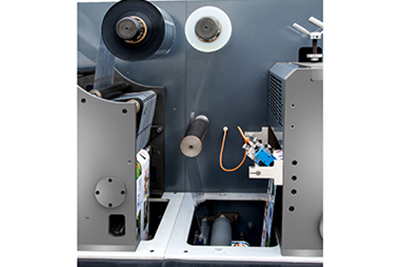

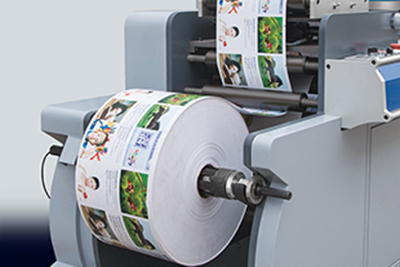

This B-1 rotary or semi-rotary die cutting machine with all options is a new developed converting machine. It can be configured with the unwinder, web-guider, UV vanishing system, lamination device, die-cutter, cold foiling device, slitter and sheeting conveyor device.
Rotary/Semi-Rotary Die Cutting Machine with Inline Slitter (B-2)
This B-2 rotary or semi-rotary die cutting machine is a specially converting machine that cooperates with inline slitter.
Die Cutting Machine with Slitting and Inkjet Table (B-2P)
Our B-2P rotary or semi-rotary die cutting machine adopts the inline slitter and inkjet table.
Rotary/Semi-Rotary Die Cutting with Machine Sheeter (B-3)
Our B-3 rotary or semi-rotary die cutting machine with sheeter is new developed converting machine equips with inline sheeter conveyor.

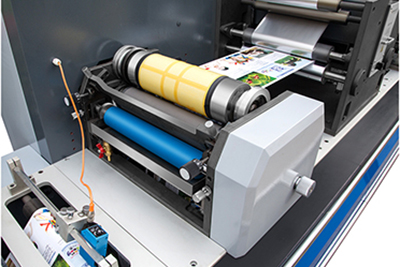

Die Cutting Machine with Flexo UV Varnishing and Sheeter (B-4)
The B-4 die cutting machine with flexo UV varnishing and sheeter is a new developed converting machine. It adopts the inline flexo UV varnishing and sheeter conveyor.
Die Cutting Machine with Sheet Feeder (B-5)
This B-5 die cutting machine introduces the inline sheeter conveyor.
Die Cutting Machine with Cold Foil Stamping, Flexo Varnishing and Sheeter (B-6)
The B-6 die cutting machine is newly developed converting machine. It is mounted with inline flexo UV varnishing unit, cold foiling device and sheeter conveyor.
Die Cutting Machine with Flexo UV Varnishing and Sheeter (B-7)
The B-7 die cutting machine is equipped with inline flexo UV varnishing, die cutting and rewinding devices.
Die Cutting Machine with Cold Foil Stamping, Flexo Varnishing and Slitter(B-8)
As new developed converting equipment, this B-8 die cutting machine chooses the inline flexo UV varnishing, cold foiling and slitting devices.
Die Cutting Machine with Flexo UV Varnishing and Sheeter (B-9)
The B-9 die cutting machine can be collocated with inline flexo UV varnishing device and sheeter conveyor.
Die Cutting Machine with Slitting and Sheet Feeder (B-10)
Inline slitting unit and sheeter conveyor are available for the B-10 die cutting machine, which is a new developed converting device.
Die Cutting Machine with Flexo UV Varnishing and Slitter (B-11)
The B-11 die cutting machine allows inline flexo UV varnishing and slitting.
Die Cutting Machine with Cold Foil Stamping, Flexo Varnishing and Sheeter (B-12)
This B-12 die cutting machine supports the inline flexo UV varnishing, cold foiling or die-cutting. It is also configured with sheeter conveyor.
Die Cutting Machine with Flexo Varnishing, Slitter and Sheeter (B-13)
The B-13 die cutting machine a new type converting machine that is equipped with inline flexo UV varnishing, slitting and sheeter conveyor.
Die Cutting Machine with Flexo Varnishing and Cold Foil Stamping (B-14)
The B-14 die cutting machine supports inline flexo UV varnishing and cold foiling functions.
Main Equipment
| Description | Quantity and Brand |

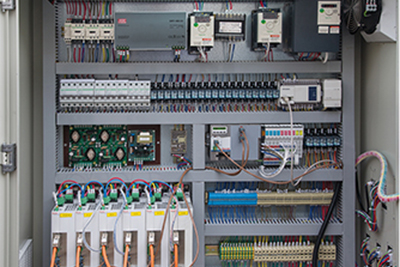

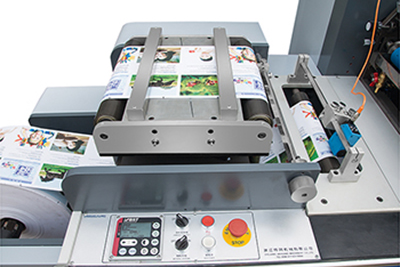

| Controller | 1piece Rexroth Bosch (German) |
| Servo drive | 1piece Rexroth Bosch (German) |
| Main motor | ≥4pieces Rexroth Bosch (German) |
| Inverter | 2pieces Schneider (France) |
| Touch screen | 1 piece Weinview (China Taiwan) |
| Following photocell switch | 1piece SICK (German) |
| Web-guiding system | 1set BST (German) |
| Contactor | 1piece Schneider (France) |
Technical Specifications

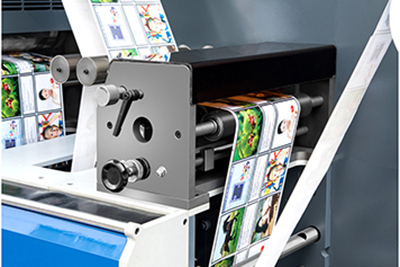

| Max. die-cutting speed (rotary) | 120m/min. |
| Max. die-cutting speed (semi-rotary) | 65m/min. |
| Max. die-cutting length (rotary) | 190.5-539.75mm |
| Max. die-cutting length (semi-rotary) | 100-350mm |
| Max. die-cutting width | 300mm |
| Max. web width | 320mm |
| Max. unwinding diameter | 700mm |
| Max. rewinding diameter | 600mm |
| Die-cutting accuracy | +0.1mm |
| Slitting width | ≥20mm |
| Power supply | 380V, 3P |
| Weight | 2600kg |
| Dimension | 3.22m×1.68m×1.66m |
Superior quality, reasonable prices and considerate service have helped us to expand our market. We now have a customer base in the United States, Argentina, Britain, the Netherlands, Spain, Portugal, Russia, Kazakhstan, Pakistan, India, Thailand, Malaysia, Singapore, Vietnam, Philippines, South Korea, and Japan, among many others.
