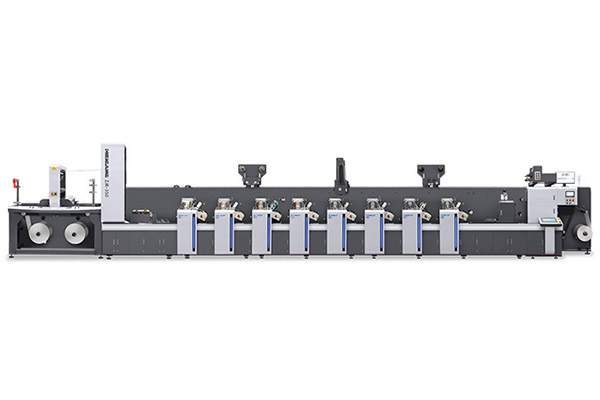

The printing machine is powered by the latest servo control system, with each unit driven by its own independent servo motor. A total of 23 servo motors (across the 8-color unit and die-cutting unit) ensure precise registration even at high speeds.
The plate cylinder uses an air-shaft sleeve design—lightweight, gearless, and easy to change. This not only speeds up plate changes but also improves print quality while reducing maintenance needs.
The printing machine is compatible with a wide range of substrates, including paper and films such as PET, OPP, CPP, and PP.
Printing and inking pressure are adjustable through micro-tuning of the support frames. Cylinder size changes require minimal adjustment, and even special printing requirements need only minor tweaks—significantly boosting efficiency compared with older designs that demanded full recalibration every time.
The printing roller is equipped with a water-cooling system, preventing heat buildup from UV curing and ensuring stable performance when printing on films.
Details

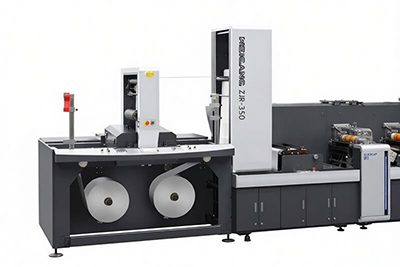

Non-stop unwinder (optional)

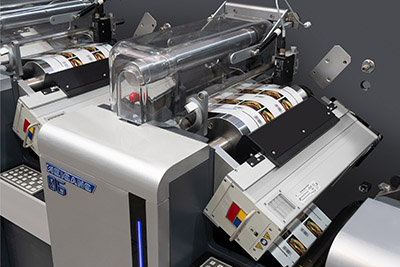

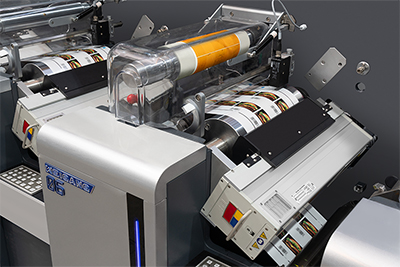

Flexo printing unit

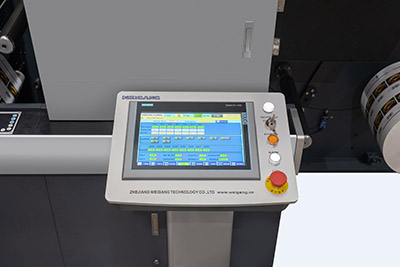

Touch screen control system

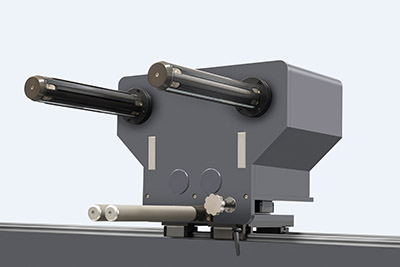

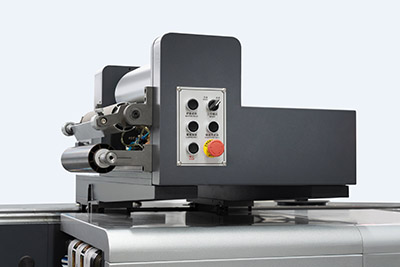

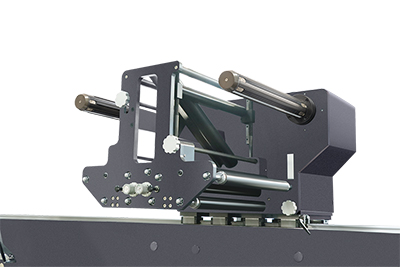

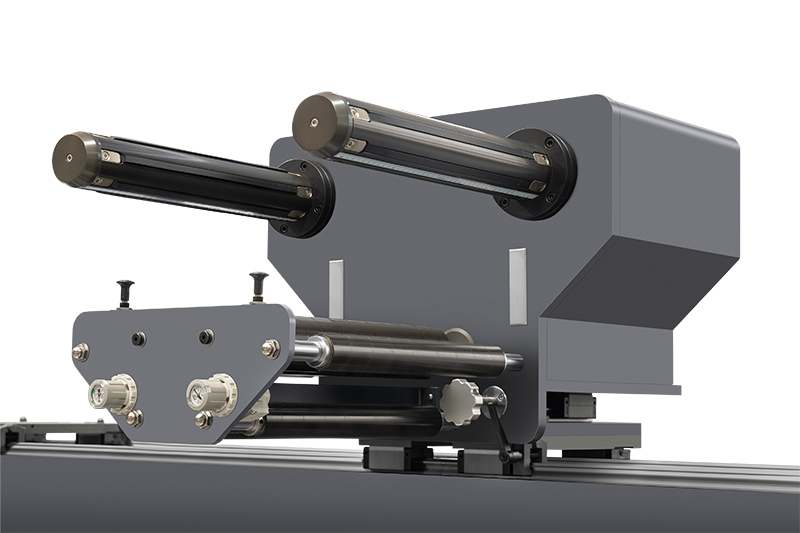

Movable cold stamping system

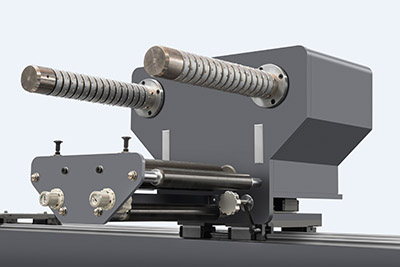

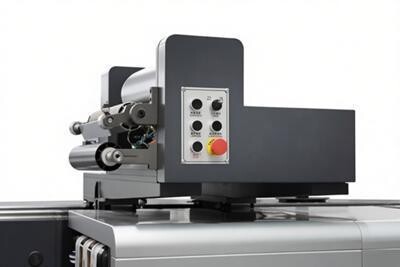

Waste scraper attachment (optional)

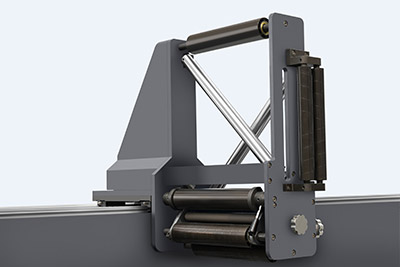

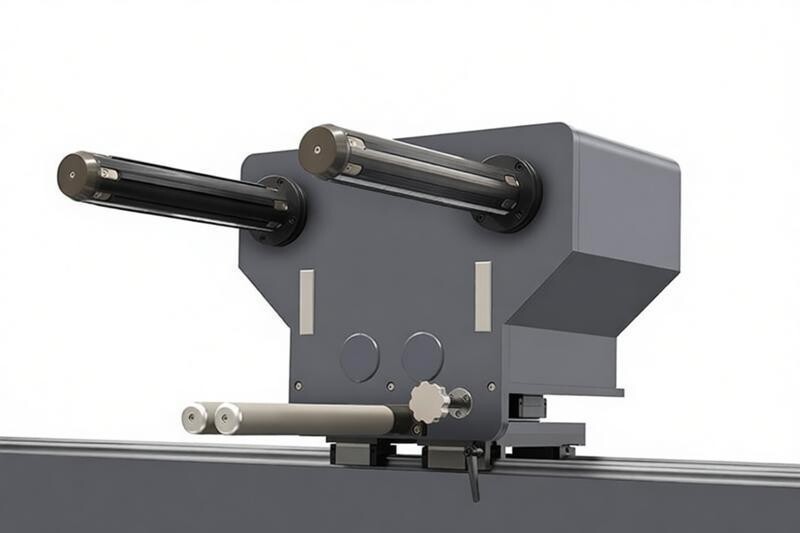

Mobile Turnbar

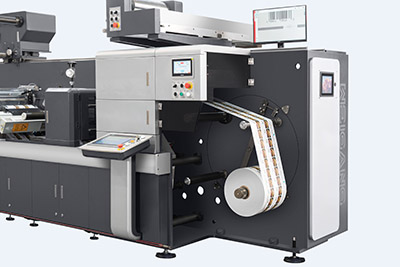

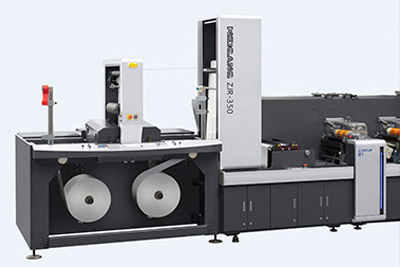

Integrated unwinder & rewinder

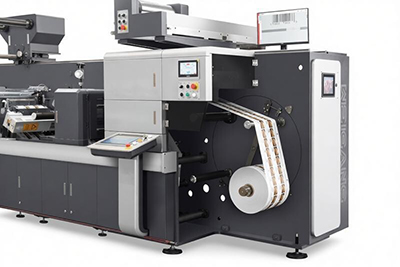

Auto turret rewinder (optional)
Technical Specifications
Model
ZJR-350G
ZJR-450G
ZJR-650G
Max. printing speed
180m/min
180m/min
180m/min
Printing color
4-12 colors
4-12 colors
4-12 colors
Max. printing width
350mm
450mm
650mm
Max. web width
360mm
480mm
680mm
Printing repeat length
Z76-190 (241.3mm-603.25mm)
Z76-190 (241.3mm-603.25mm)
Z96-230 (304mm-730.25mm)
Max. unwinding diameter
800mm
800mm
1000mm
Max. rewinding diameter
800mm
800mm
1000mm
Dimensions(L×W×H)
13 × 1.88 × 2.45m
13 × 2 × 2.45m
10 × 2.2 × 1.56m
(8-color printing unit, 1 die-cutting unit, non-stop rewinding and unwinding)
