The digital printer offers flexible color combinations, allowing for arbitrary color combinations and enhanced effect.
The maximum printing speed is 60m/min, balancing high efficiency and flexible operation plans.
The printing width reaches up to 350mm, offering customers with expanded application range and increased flexibility.
Digital printing machine is equipped with a high-precision piezo print head, durable and long-lasting.
The digital printer offers consistent print quality, supporting round-the-clock production.
Utilizing a single-pass solution and non-contact printing, the printing machine allows for one-step printing without the need for plate-making.
The highest printing accuracy can reach 1200*600dpi, with optional precision modes of 900*600 dpi and 600*600dpi, resulting in dedicate print with vivid color.
CMYK+ pantone colors offer rich color reproduction, and white ink and varnish provide enhanced effects.
High-integration software enables fast order acceptance, small-batch customization, sample printing, and other functions.
User-friendly interface is easy to understand and operate.
Digital printing machine offers automatic cleaning, moisturizing, and anti-collision printhead, facilitating equipment maintenance.
Details
Unwinder
Web-guider, Corona Treatment System, Web Cleaner, and Primer Unit

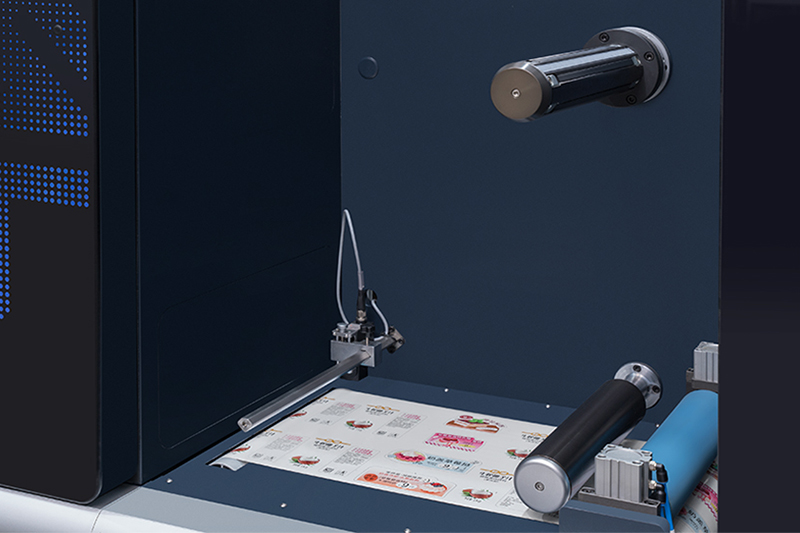

Digital Printing Unit
2-Color Digital Embellishment Module & Foil Stamping Unit
Digital Proofing Station

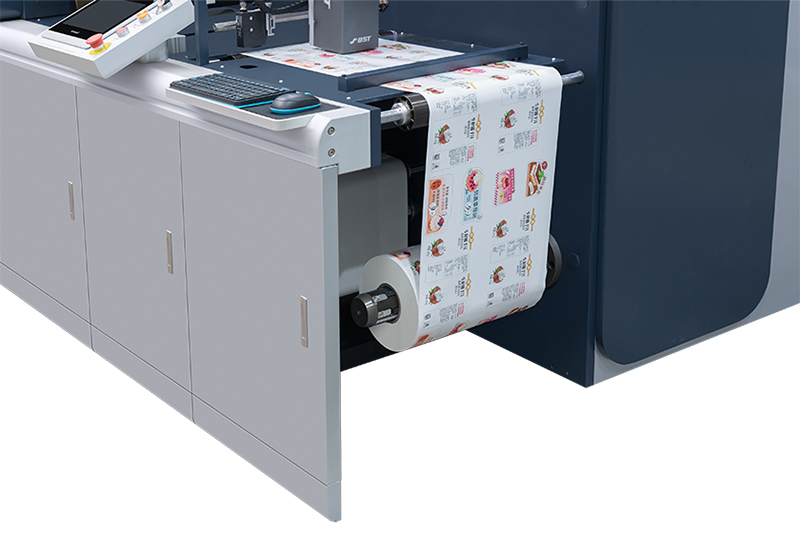

Rewinder
Technical Specifications
Model
WG S350 Pro
Print control
Inkjet head
Piezo print head, greyscale level
Print resolution
600*600dpi/900*600dpi/1200*600dpi
Printing speed
High resolution mode : 30m/min(EPSON S3200),25m/min(KJ4B-EX600)
Normal mode : 45m/min(EPSON S3200),35m/min(KJ4B-EX600)
Single bit mode : 60m/min(EPSON S3200),50m/min(KJ4B-EX600)
Print data
Fix data, variable data (option)
Print head model
EPSON S3200/KJ4B-EX600
Ink
Ink type
UV ink
Ink color
CMYK, White, varnish and Pantone (option)
Ink tank
5L/color
Substrate system
Unwinder/rewinder
Servo control, tension detector, web break protect, roll dia. detector, etc.
Max unwinder/rewinder diameter
700mm
Substate thickness (digital)
0.02-0.35mm
Max print width
350mm(EPSON S3200)/320mm(KJ4B-EX600)
Web cleaner
Double side contacted type
Static eliminator
Static eliminator bar
Max web width
360mm
Drying system
LED dryer
White color and special effect: 1 color/dryer CMYK and panton: 1 colors/dryer
Complete curing
LED + Final UV curing unit
Cleaning system
Cleaning unit
Auto cleaning system
Data transfer
Connector
XFP
Control panel
Touchscreen
Specification
Dimension
7820*2200*2300mm, L*W*H
Floor space
30㎡
Installation conditions
Surroundings
Temperature: 15-24degree; humidity:40-70%
Power supply
380V3P (machine: 25kW, LED/UV for inkjet: 40kW)
Air supply
0.6MPa
