The digital printing machine offers flexible color combinations, allowing for any combination of colors and enhanced effect.
The printing speed can reach up to 60m/min, balancing high efficiency and flexible operation schemes.
The printing width reaches 230mm, expanding the application range for customers and increasing flexibility.
Utilizing a single-pass solution and non-contact printing, the printing machine allows for one-step printing without the need for plate-making.
The highest printing accuracy can reach 1200*600dpi, with optional precision modes of 900*600 dpi and 600*600dpi, resulting in dedicate print with vivid color.
High-integration software enables quick order acceptance, small-batch customization, and sample printing functions.
The user interface is simple and easy to understand and operate.
Digital printing machine offers automatic cleaning, moisturizing, and anti-collision printhead, facilitating equipment maintenance.
The digital printer is compact and occupies minimal space, making it suitable for various applications.
Digital printer is equipped with a high-precision piezo print head, ensuring long-term durability.
The digital printer offers consistent print quality, supporting round-the-clock production.
Details
Unwinder
Web Cleaning & Corona Treatment System

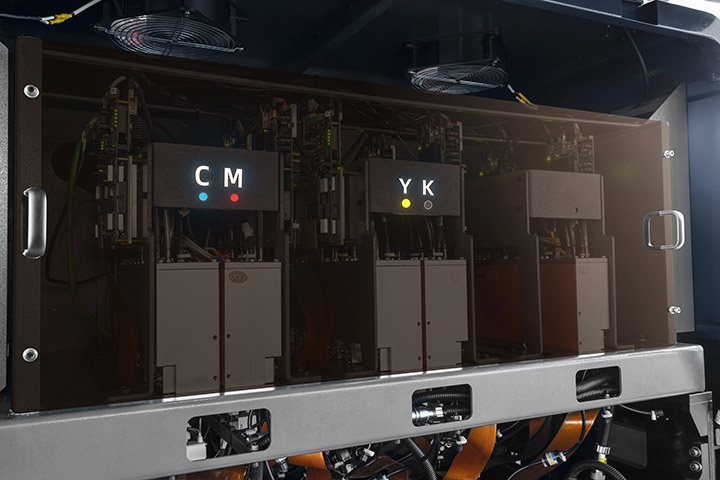

Digital Printing Unit
Coating Unit

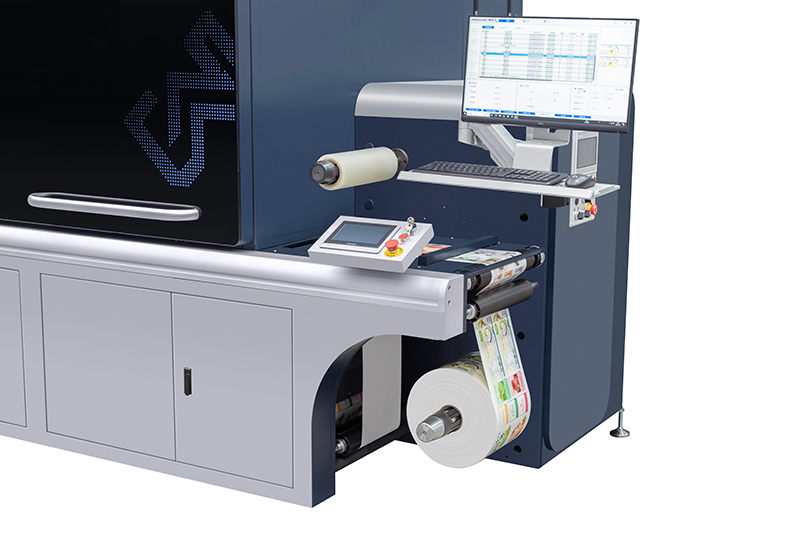

Laminating and Rewinder System with Touchscreen Control
Technical Specifications
Model
WG S230
Print control
Inkjet head
Piezo print head, greyscale level
Print Resolution
600*600dpi/900*600dpi/1200*600dpi
Printing speed
High resolution mode 30m/min(EPSON S3200),25m/min(KJ4B-EX600）
Normal mode:45m/min(EPSON S3200),35m/min(KJ4B-EX600)
Single bit mode: 60m/min(EPSON S3200),50m/min(KJ4B-EX600)
Print data
Fix data, variable data (optional)
Print head model
EPSON S3200/KJ4B-EX600
Ink
Ink type
UV ink
Ink color
CMYK, white, varnish and Pantone (optional)
Ink tank
5L/color
Substrate system
Unwinder/rewinder
Servo control, tension detector, web break protect, roll dia. detector, etc.
Max unwinder/rewinder diameter
600mm
Substate thickness (digital)
0.04-0.35mm
Max print width
230mm(EPSON S3200)/220mm(KJ4B-EX600)
Web cleaner
Double side contacted type
Static eliminator
Static eliminator bar
Max web width
350mm
Drying system
LED dryer
One-color one-curing LED drying system
Final UV curing unit
Complete curing
-
Data transfer
Connector
XFP
Control panel
Touchscreen
Specification
Dimensions
4050*2200*2200mm
Floor space
9㎡
Installation conditions
Surroundings
Temperature: 15-24degree, humidity:40-70%
Power supply
380V 3P (total power:40kw)
Air supply
0.5-0.7MPa
