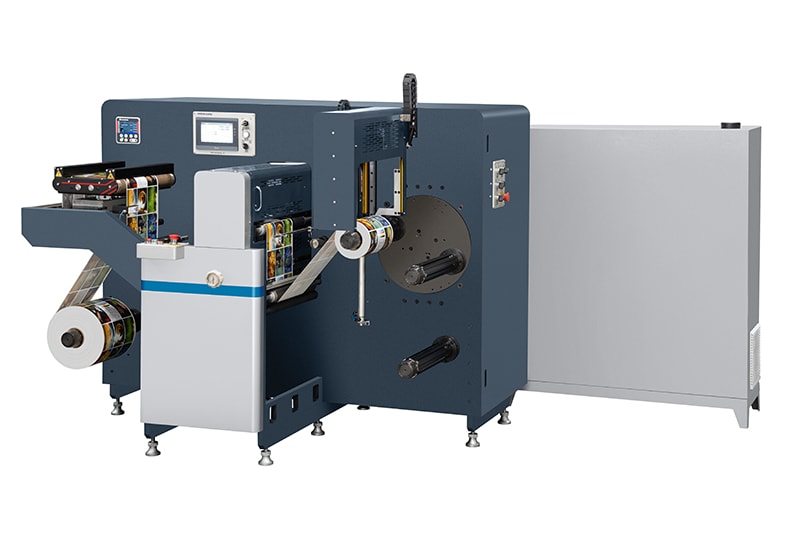

The WGF-370D automatic slitter rewinder is designed for slitting and rewinding printed label webs. Featuring full-servo control, the machine handles web widths up to 370 mm and delivers slitting speeds of up to 300 m/min. The slitter rewinder is fitted with an automatic knife-positioning system that adjusts the slitting knife positions to accommodate different label widths and reduce manual setup time during changeovers.
Advantages
- Faster Job Changeovers: Automatic adjustment of slitting knife spacing and quick-change air shafts reduce setup time when switching between different label formats
- Streamlined Roll Changes: Automatic changeover between the two rewind shafts, combined with automatic web cutting, simplifies roll changes and helps minimize unnecessary downtime
- Better Control of Finished-Roll Quantities: Automatic length measurement, counting, and low-material alarms provide greater control over the quantities produced for each order
Technical Specifications
| Model | WGF-370D |
| Max. slitting speed | 300m/min |
| Max. web width | 370mm |
| Max. unwinding diameter | 700mm |
| Max. rewinding diameter | 700mm (standard) / 400mm (changeover mode) |
| Dimensions(L×W×H) | 1,800×1,420×1,450mm |
| Machine weight | Approx.1,300kg |
| Min. Slitting Width | 20mm |
