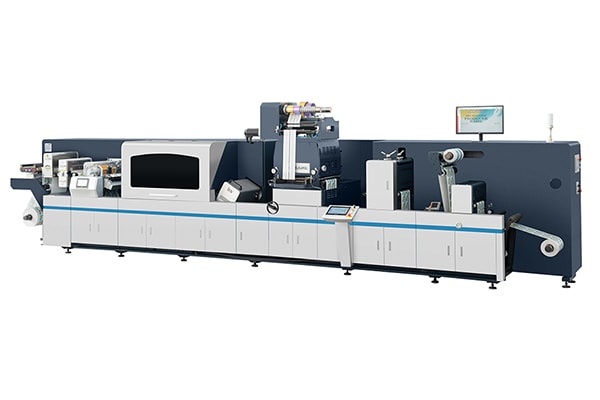

Modular Converting & Finishing System, WGHZ-350
- Max. intermittent die-cutting speed 65m/min
- Flatbed die-cutting accuracy ±0.15mm
- Max. web width 350mm
- Min. slitting width 20mm

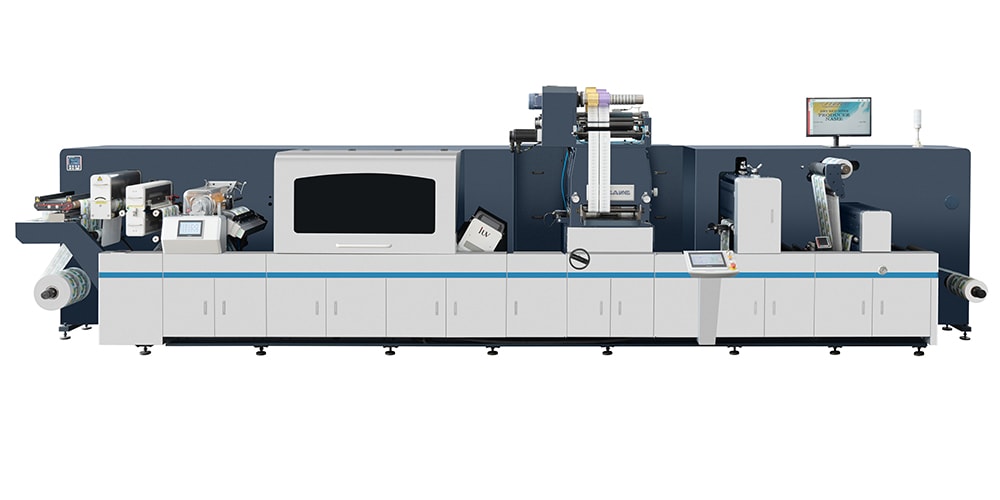

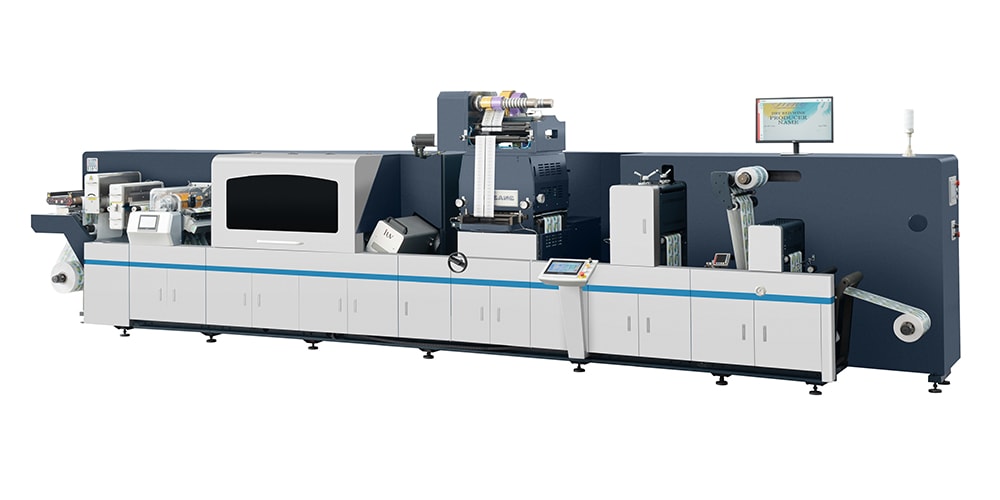

WGHZ-350 modular converting and finishing system integrates multiple label printing and finishing processes on a single production line. Featuring independent full-servo drives and a modular design, the system can be configured with flatbed screen printing, flatbed die-cutting, full-rotary or intermittent rotary die-cutting, and automatic slitting units.
The converting and finishing system supports both full-rotary and intermittent operation; the system allows complex label finishing processes to be completed with fewer material transfers, shorter waiting times, and less repeated registration setup.
Advantages
- Streamlined Production: Completing multiple printing and finishing processes inline reduces waiting time and the need to transfer materials between standalone machines
- Flexible Production for Different Run Lengths: Full-rotary operation supports efficient long-run production, while intermittent operation accommodates frequent job changes, custom orders, and complex finishing requirements
- Reduced Material Waste: Fewer repeated plate-mounting and registration adjustments, along with less waste from machine starts and stops, help minimize material consumption during production
Technical Specifications
| Max. web width | 350mm |
| Max. unwinding diameter | 800mm |
| Max. rewinding diameter | 800mm |
| Max. flatbed die-cutting area | 350×350mm |
| Flatbed die-cutting accuracy | ±0.15mm |
| Screen printing length | 450mm |
| Intermittent flexo repeat | 76-190T |
| Intermittent rotary die-cutting repeat | 76-190T |
| Max. intermittent die-cutting speed | 65m/min |
| Min. slitting width | 20mm |
Details
Optional Modules

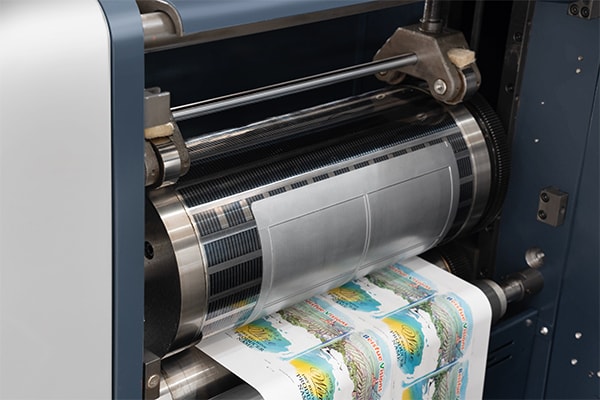

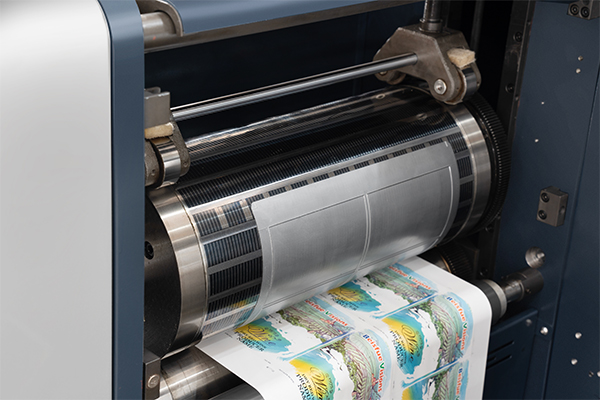

- Full-Rotary / Intermittent Flexo Printing: Supports configurable inline printing, varnishing, and spot-color applications to meet different production requirements.

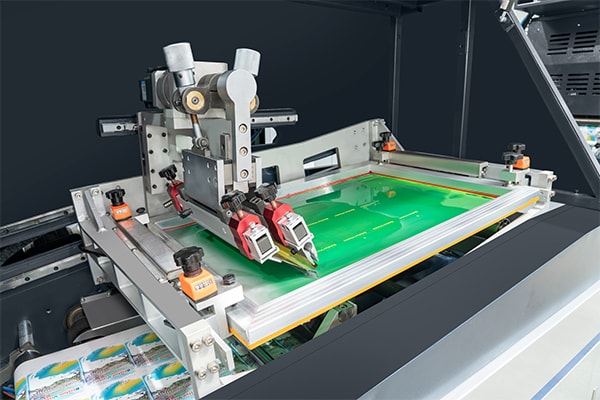

- Flatbed Screen Printing

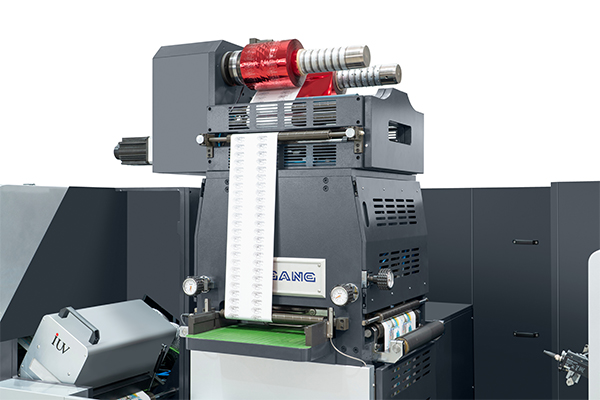

- Flatbed Die-Cutting with Hot Foil Stamping
- Full-Rotary / Intermittent Rotary Die-Cutting: Allows converters to select the die-cutting mode best suited to each run length and finishing requirement.

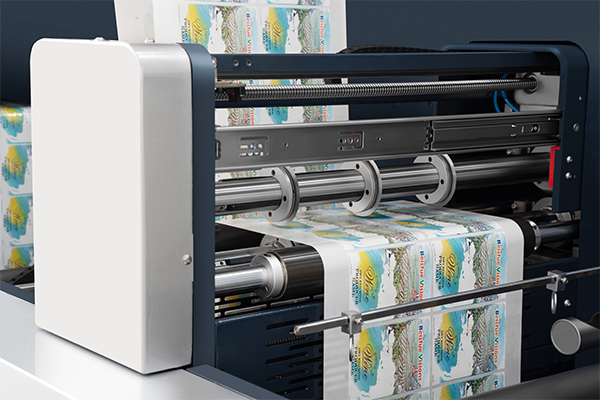

- Automatic Knife-Positioning Slitting Unit: Reduces slitting setup and changeover time when switching between different label formats.
