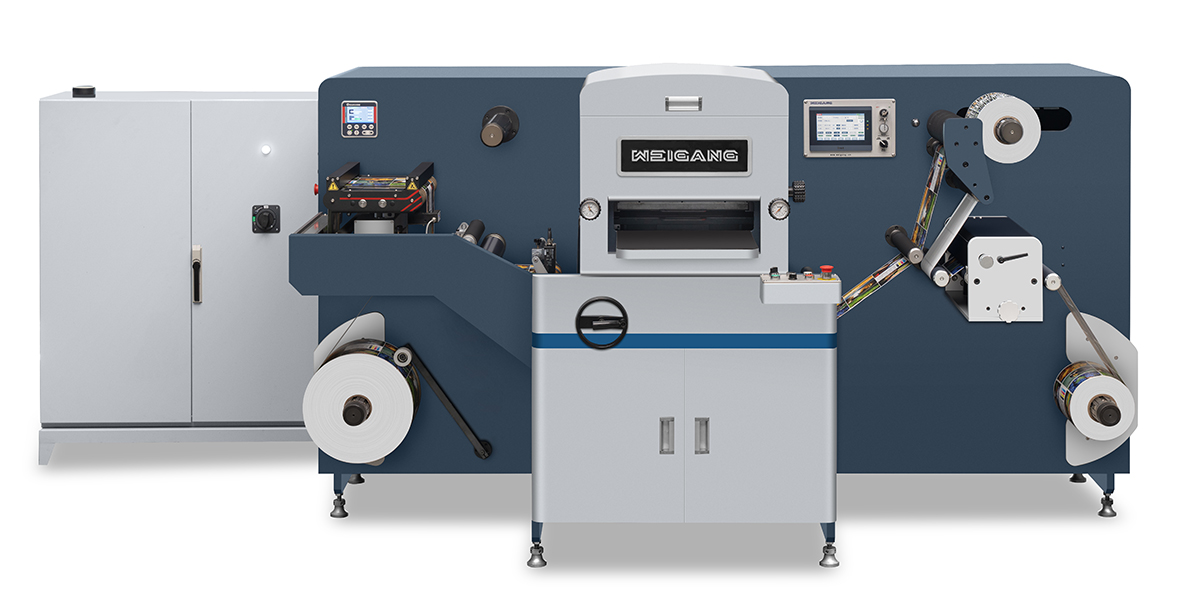

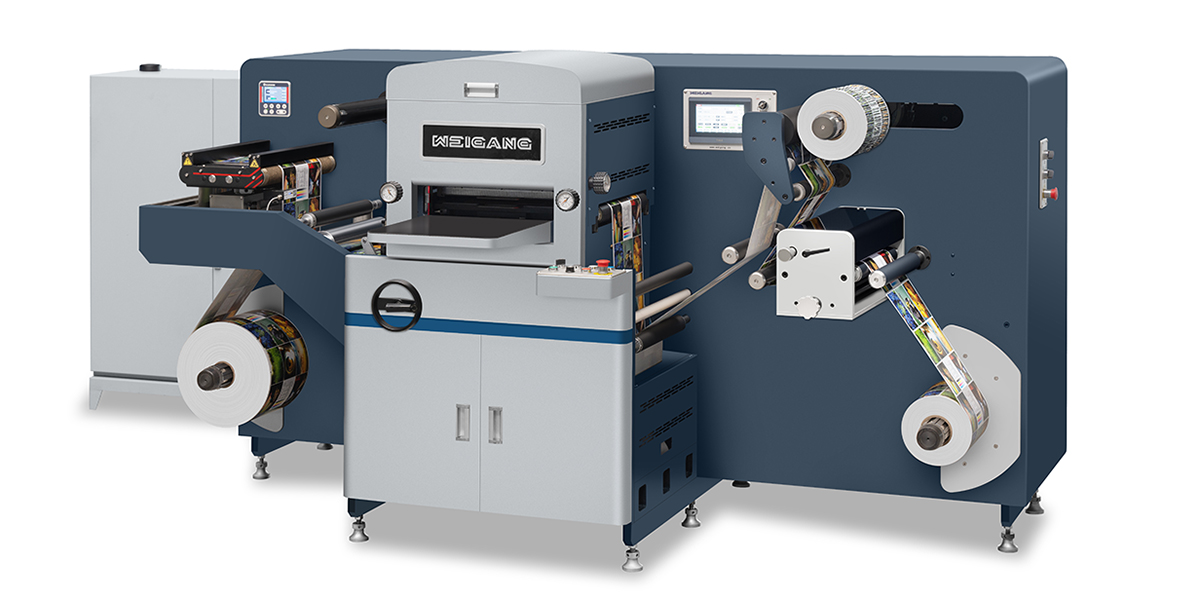

The WGMQ-370 flatbed label die-cutting machine combines die-cutting and hot foil stamping in an inline finishing process. Its compact design allows flexible use in different production environments, while the high-precision servo drive delivers positioning accuracy of ±0.15 mm. With die-cutting speeds of up to 400 strokes per minute, the die-cutter is suitable for various label production, such as producing self-adhesive paper labels, polyester film labels, and holographic security labels.
| Model | WGMQ-370 |
| Max. die-cutting speed | 400 strokes per minute |
| Max. web width | 370mm |
| Max. die-cutting area | 350×350mm |
| Max. unwinding diameter | 700mm |
| Max. rewinding diameter | 700mm |
| Min. slitting width | 20mm |
| Positioning accuracy | ±0.15mm |
| Total power | 17kW |
| Power supply | 380V |
| Machine weight | Approx. 3000kg |
| Dimensions (L×W×H) | 2,650×1,650×1,450mm |
